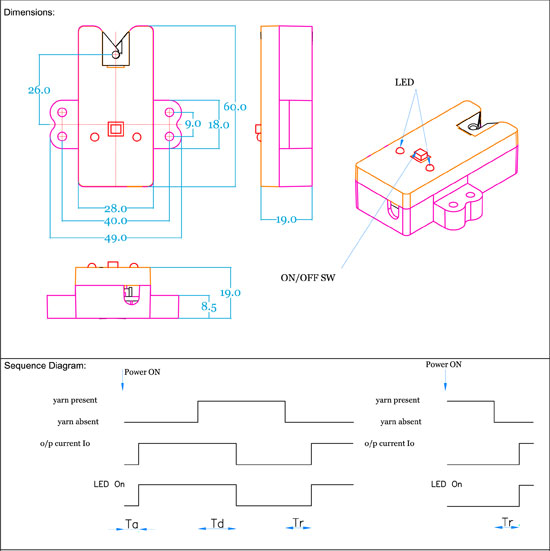

Opto Electronic Yarn Detectors >> OYM06
Opto Electronic Yarn Detectors

OYM06
Data :
Supply Voltage : 24VDC +/-15%
Supply Current Is :

30 mA.
Power ON Delay Ta : 0.5 sec.
Sensing Delay Td : 0.5 sec.
Reaction Time Tr : 0.05 sec.
Output Current lo : 0.4 Amp
Application :
Designed for easy application on wide renge of processes providing detection of yarn in assembly winder applications. Suitable for all standard yarns in any colour inclucing black.
Specifications subject to change without notice
