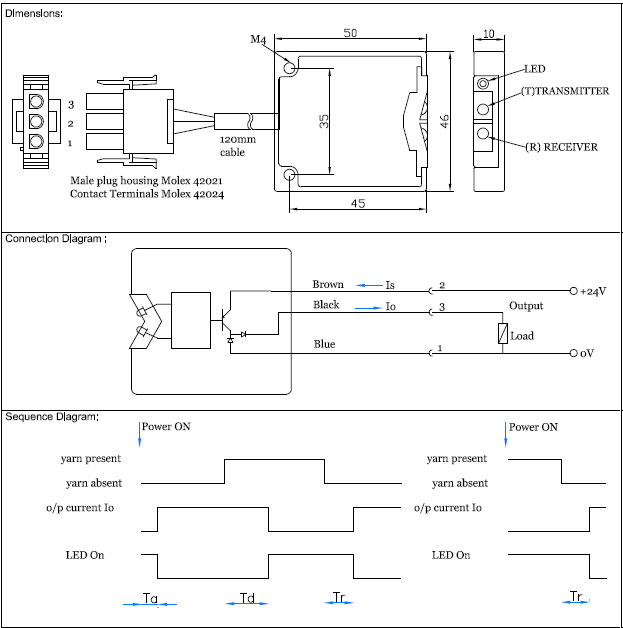

Opto Electronic Yarn Detectors >> OYM01
Opto Electronic Yarn Detectors
OYM01
Data :
Supply Voltage : 24VDC +/-15%
Supply Current Is : 30 mA. : 0.5 sec.
Power ON Delay Ta : 0.5 sec.
Sensing Delay Td : 0.5 sec.
Reaction Time Tr : (variable)
Output Current Io : 0.4 Amp

Application :
Optical  Yarn  Detectors  are  suitable  to  wide  range  of natural  or synthetic  yarns.  It  can  detect  yarns  which   are  balooning,  traversing  or travelling  in  straight  paths.   This  detector can  be  mounted  up  to 5/10mm  from  the  yarn  track.  Suitable  for Barmag  Craft  Winder ACW4
Specifications subject to change without notice
